    Razor Barbed Wire

    Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
    Standard materials are either galvanized or stainless steel.
    Standard packages products are shown in the tables above, special specifications available on request.

    Reference Number
    Blade Style
    Thickness
    Wire Dia
    Barb
    Length
    Barb
    Width
    Barb
    spacing
    BTO-10
    0.5±0.05
    2.5±0.1
    10±1
    13±1
    26±1
    BTO-12
    0.5±0.05
    2.5±0.1
    12±1
    15±1
    26±1
    BTO-18
    0.5±0.05
    2.5±0.1
    18±1
    15±1
    33±1
    BTO-22
    0.5±0.05
    2.5±0.1
    22±1
    15±1
    34±1
    BTO-28
    0.5±0.05
    2.5
    28
    15
    45±1
    BTO-30
    0.5±0.05
    2.5
    30
    18
    45±1
    CBT-60
    0.6±0.05
    2.5±0.1
    60±2
    32±1
    100±2
    CBT-65
    0.6±0.05
    2.5±0.1
    65±2
    21±1
    100±2

    Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
    Standard materials are either galvanized or stainless steel.
    Standard packages products are shown in the tables above, special specifications available on request.
    Barbed Tape Wire Specification:

    Outside Diameter
    No. of Loops
    Standard Length per Coil
    Type
    Notes
    450mm
    33
    7-8M
    CBT-60.65
    Single coil
    500mm
    56
    12-13M
    CBT-60.65
    Single coil
    700mm
    56
    13-14M
    CBT-60.65
    Single coil
    960mm
    56
    14-15M
    CBT-60.65
    Single　coil
    450mm
    56
    8-9M (3 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type
    500mm
    56
    9-10M (3 CLIPS)
    BTO-10.12.18.22.28.30
    Cross　type
    600mm
    56
    10-11M (3 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type
    600mm
    56
    8-10M (5 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type
    700mm
    56
    10-12M (5 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type
    800mm
    56
    11-13M (5 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type
    900mm
    56
    12-14M (5 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type
    960mm
    56
    13-15M (5 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type
    980mm
    56
    14-16M (5 CLIPS)
    BTO-10.12.18.22.28.30
    Cross type

    Notes:
    Standard products are shown in the tables above, special specifications available on request.
    Standard materials are either galvanized or stainless steel.

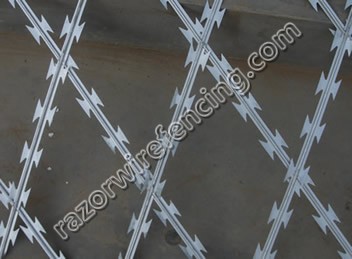

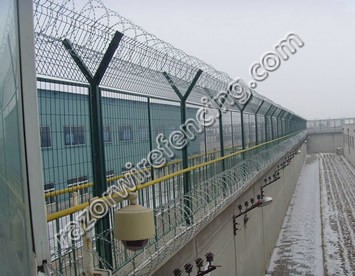

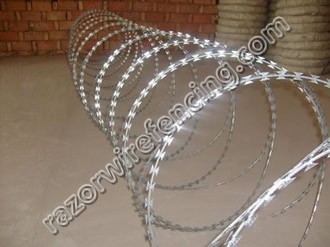

    Razor Barbed Wire Images:
